How to use Keycloak as an external IdP for your own nmaas instance

Requirements

  • Keycloack version 25.0+

    • Overview

    nmaas allows users to log in not only via a local account, but also using external identity providers that comply with the OpenID Connect (OIDC) standard. This allows administrators to integrate existing authentication systems, such as Keycloak, without having to change the authorization logic on the platform itself.

    Article objective

    This is done in 2 steps:

    • Keycloak realm and client configuration
    • Filling in the required environmental variables in the nmaas-platform

    Keycloak configuration

    Create Realm

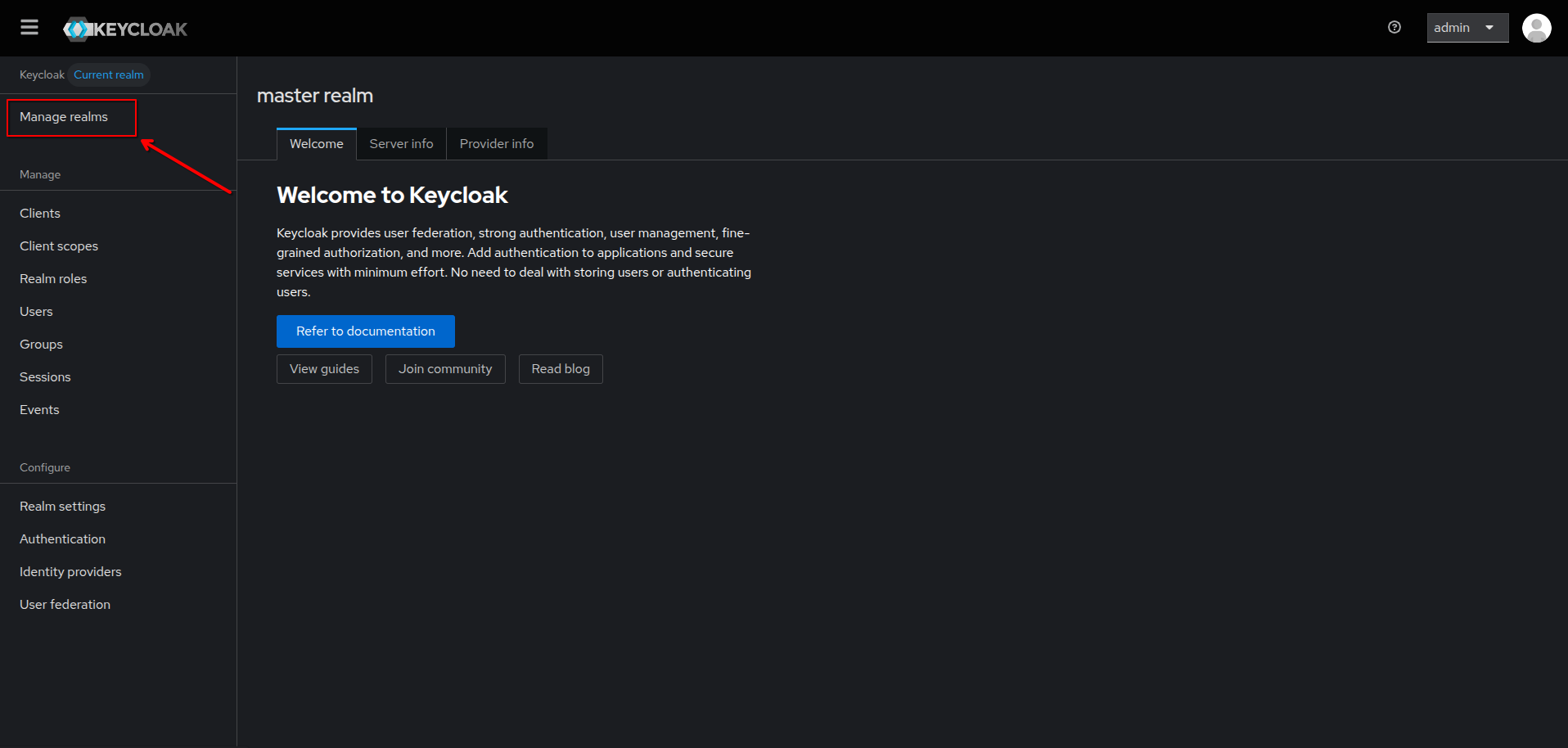

    • Log in to the administrator panel in Keycloak and select Manage realms.
      If your realm is ready, you can proceed to creating a client.
      Screenshoot_1

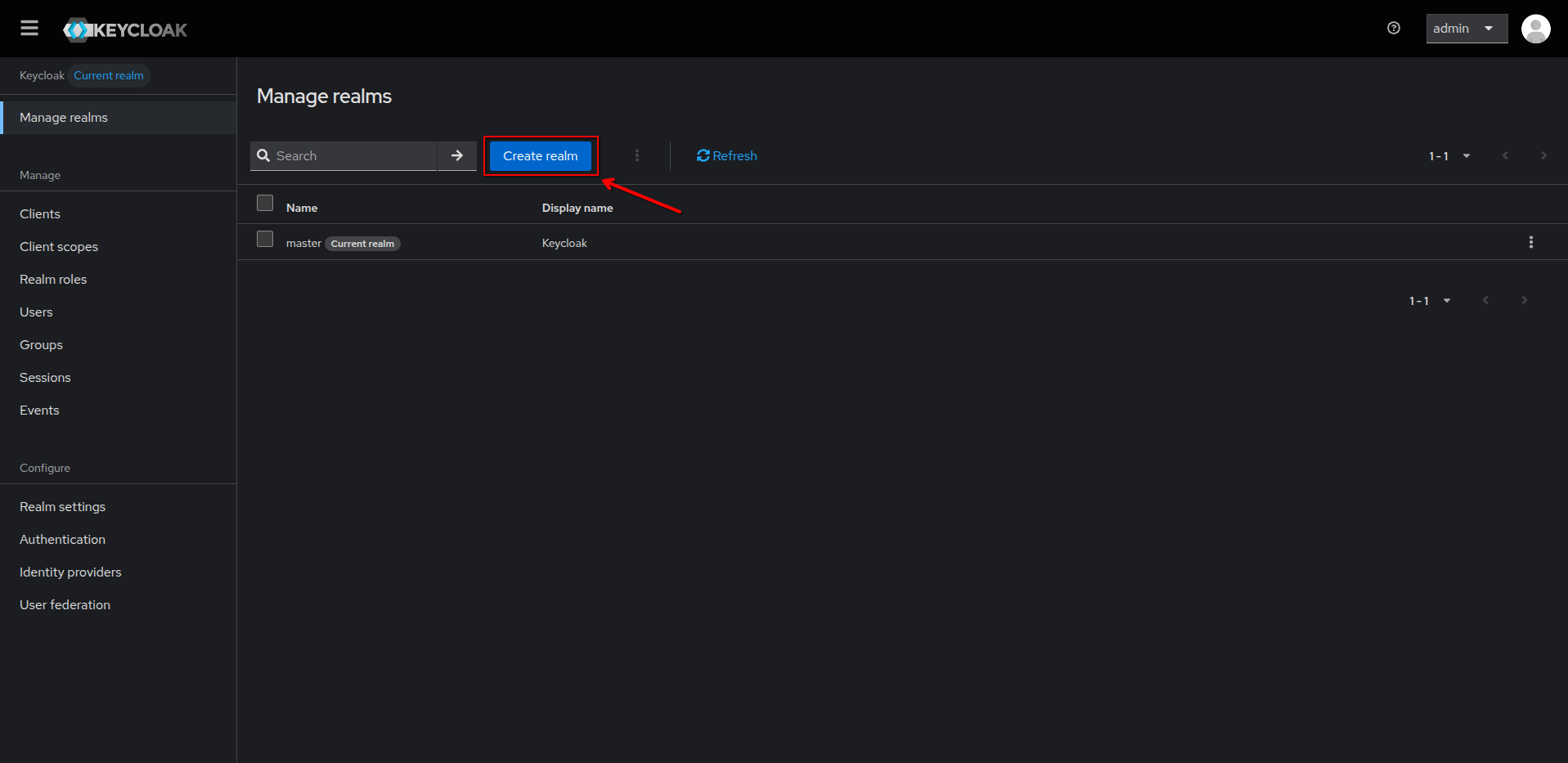

    • Create a new realm for nmaas.
      Screenshoot_2

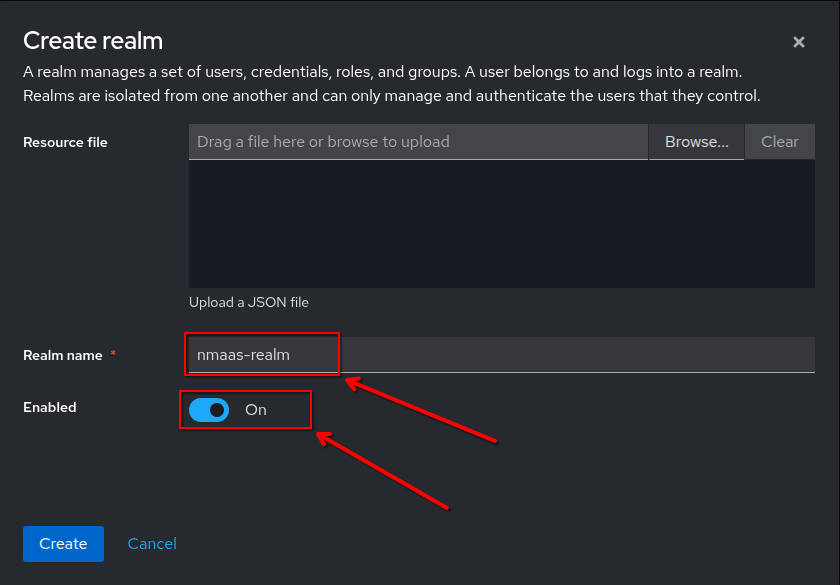

    • Fill in the name for the new realm, remember to check enable realm
      Screenshoot_3

    Create client

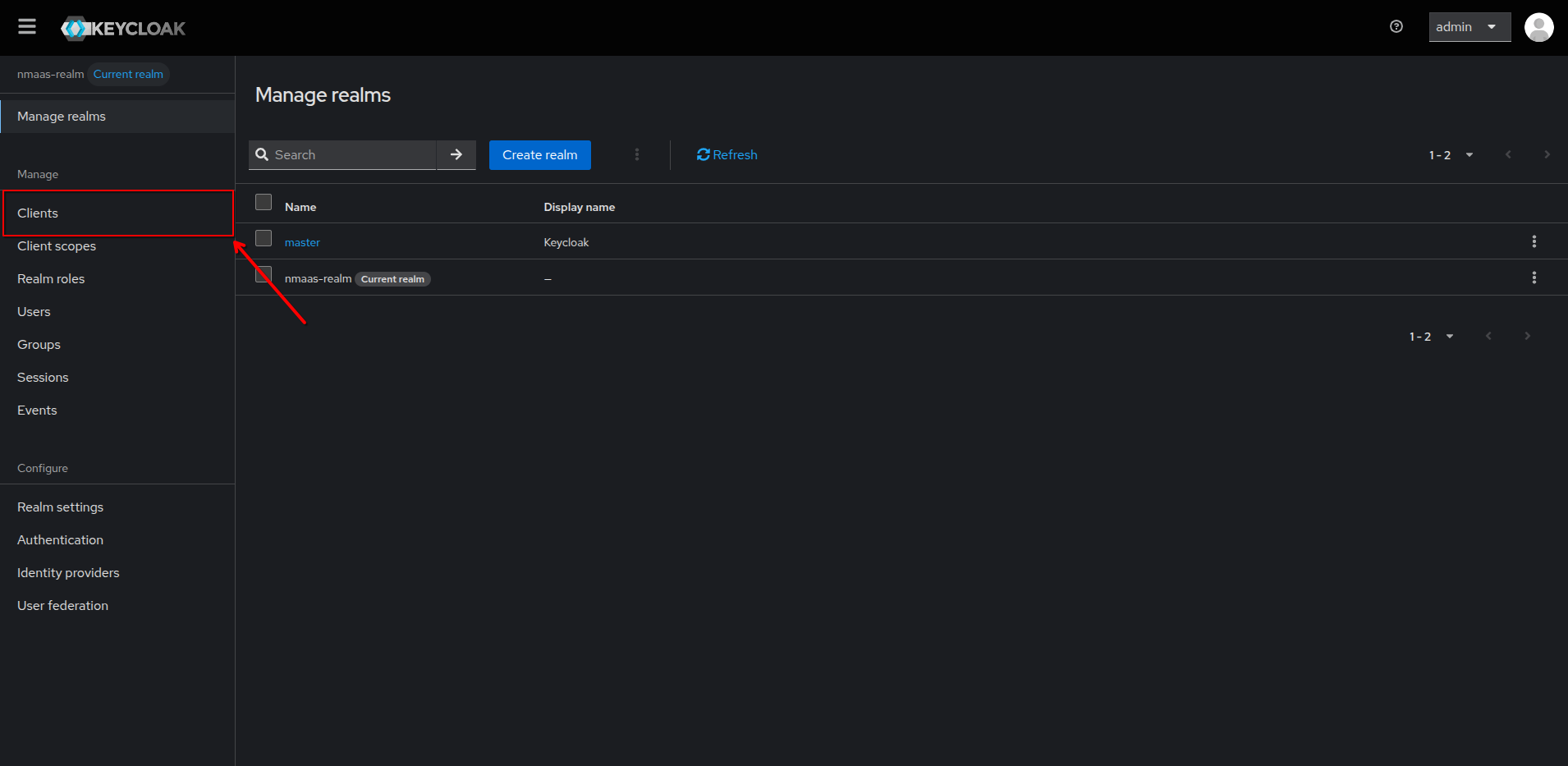

    • Select clients list
      Screenshoot_4

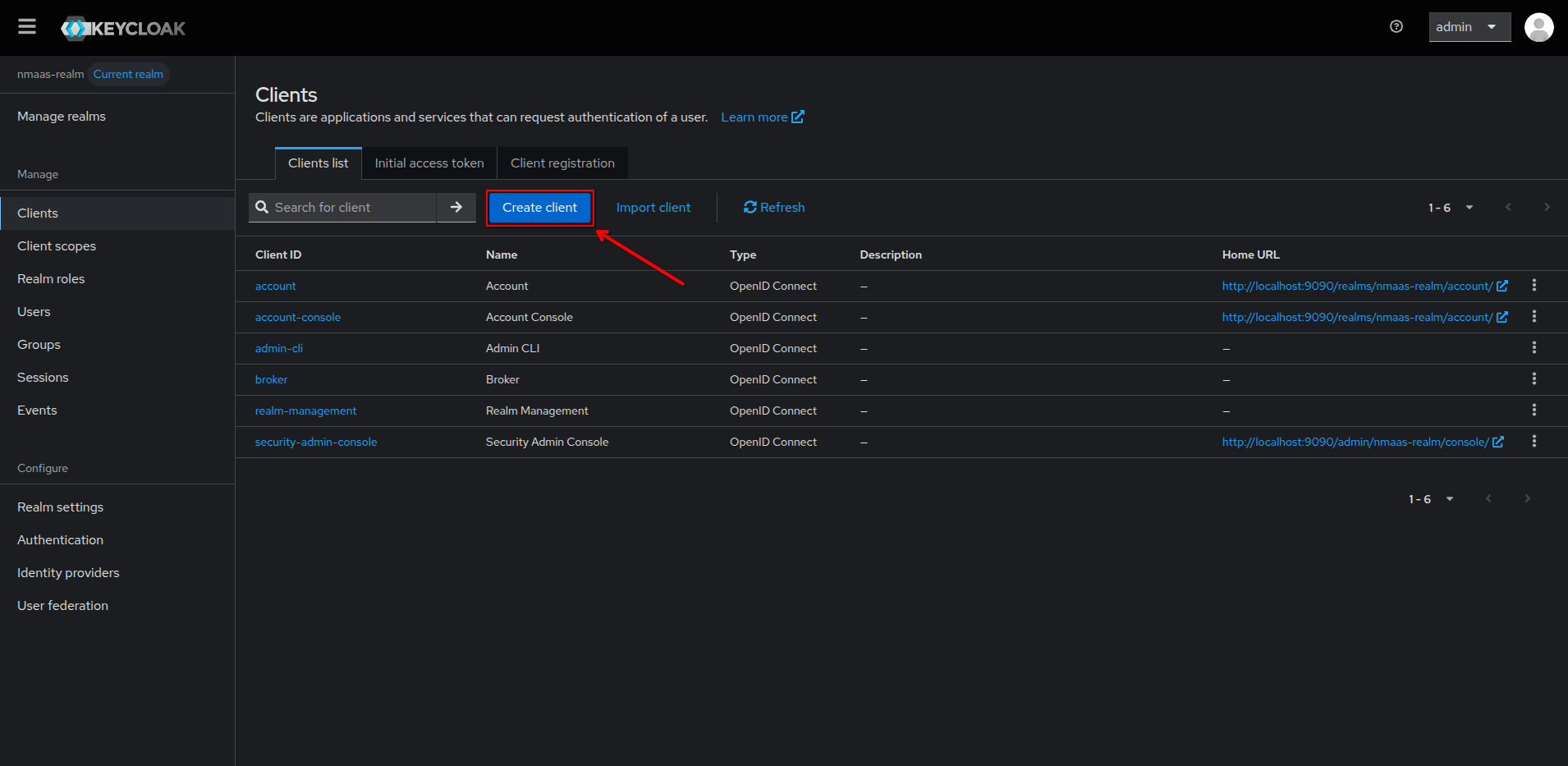

    • Create new client
      Screenshoot_5

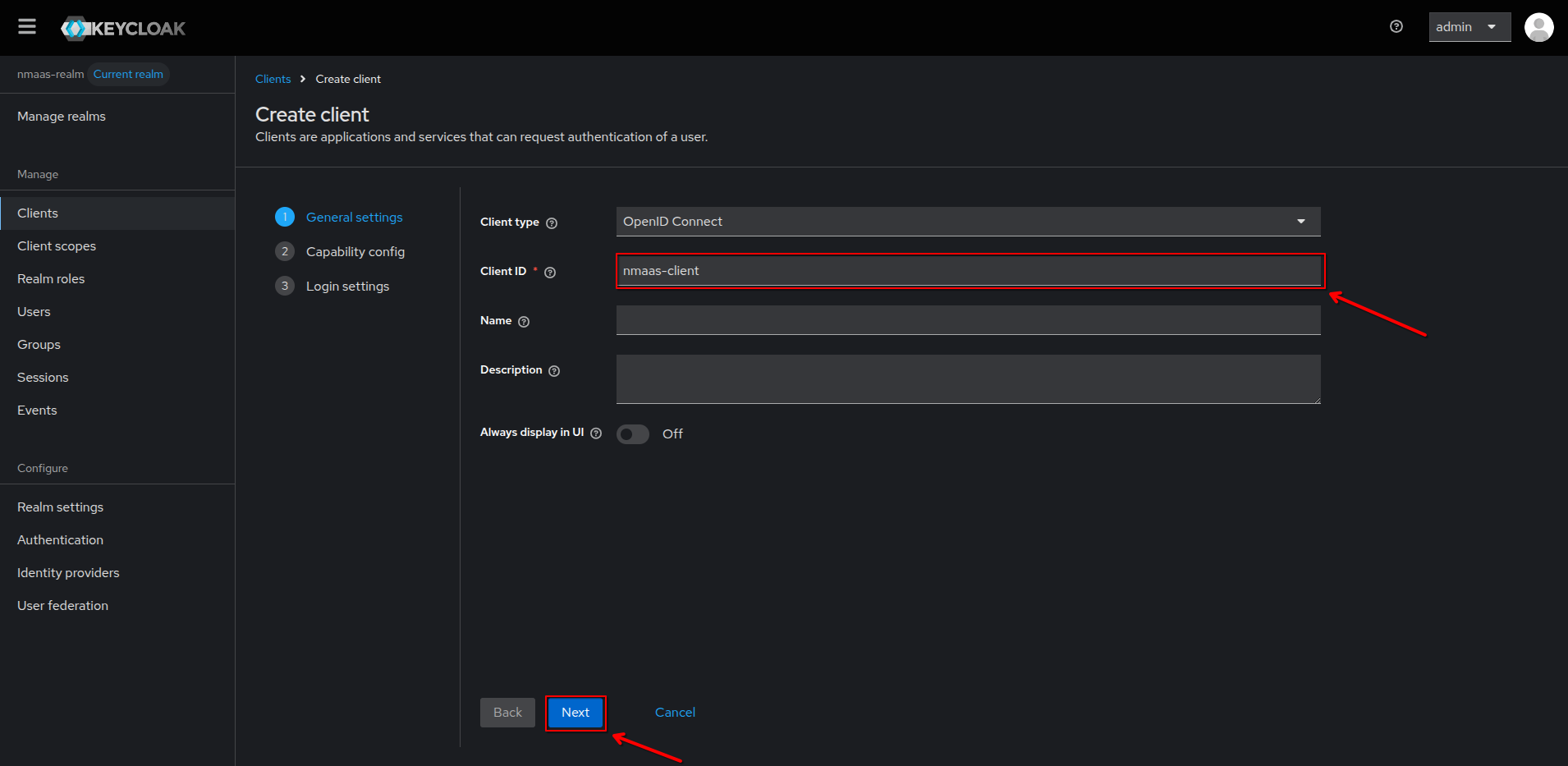

    • The required information in the form will be the ClientId, which will be in the nmaas-platform as the environment variable OIDC_CLIENT_ID.
      Screenshoot_6
    • In the next step, select Standard flow to give the client access to OpenID Connect and Client authentication to set the access type as confidential access.
      Screenshoot_7

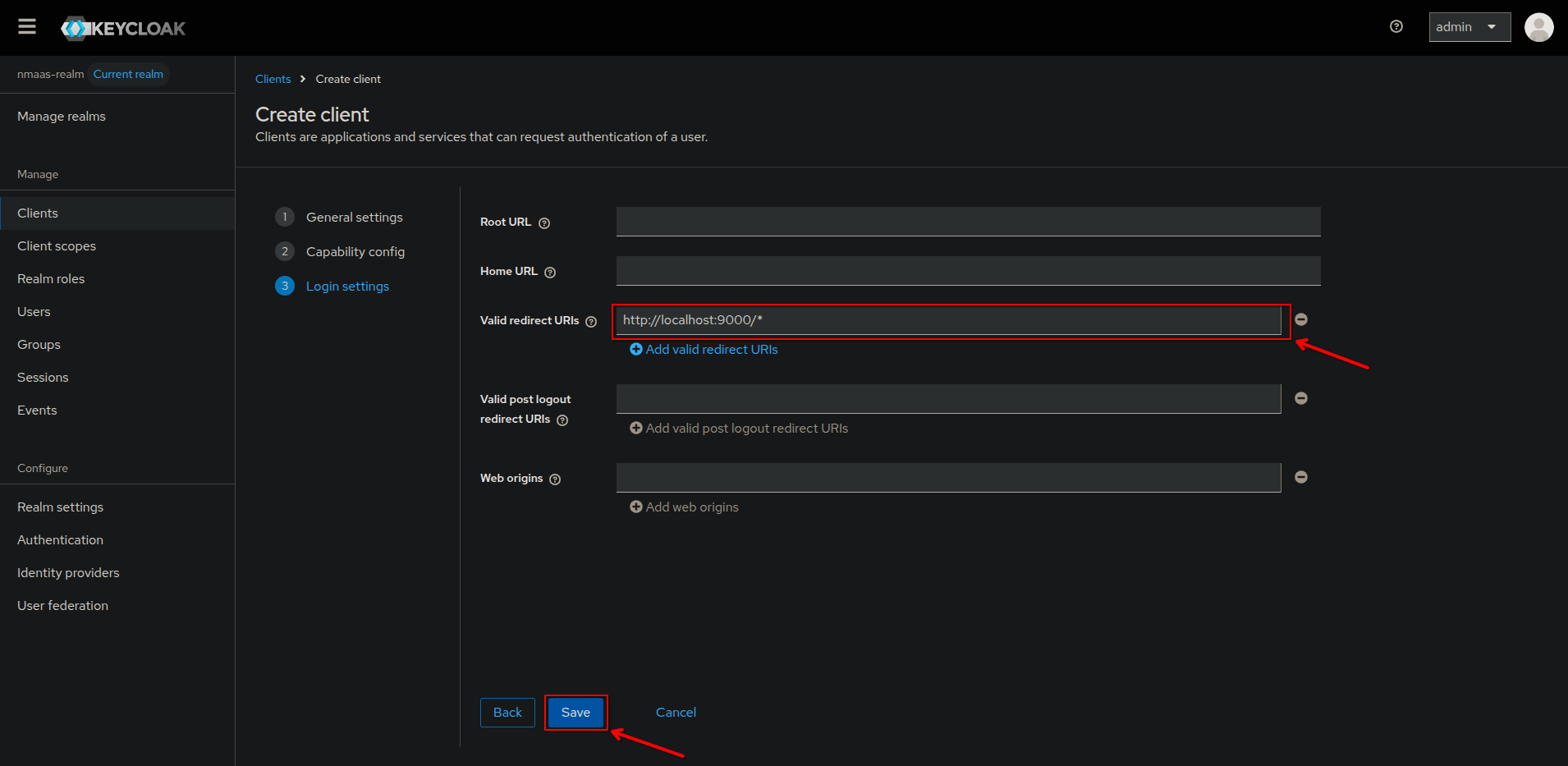

    • In the last step of creating a client to enable the nmaas-platform to log in via Keycloak, specify Valid redirect URIs relative to the nmaas-platform service.
      Screenshoot_8
    • After creating the client, go to the Credentials tab to copy the Client secret. It will be needed for the OIDC_CLIENT_SECRET environment variable.
      Screenshoot_9

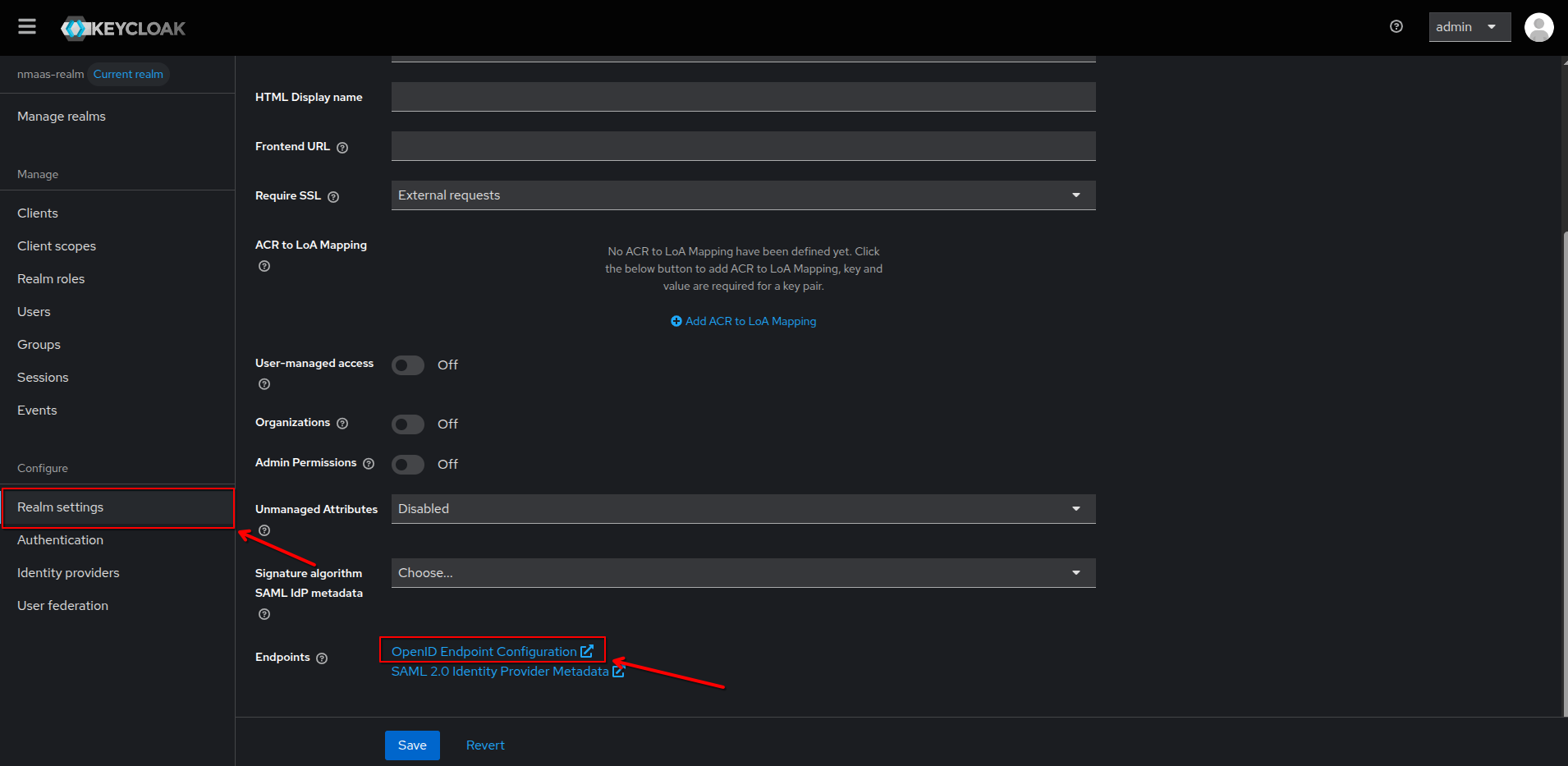

    • The last environment variable from Keycloak is OIDC_ISSUER_URI. It can be accessed in the Realm settings tab in the Endpoints section under the OpenID Endpoint Configuration link.
      Screenshoot_10 Screenshoot_11

    The nmaas-platform environmental variables

    If you already have a working Keycloak instance with a configured realm and client, you need to specify the following environment variables when deploying the nmaas-platform:

    ENV Value
    PORTAL_SSO_ALLOWED_FLAG Must be set to true
    OIDC_CLIENT_ID Client ID from Keycloak
    OIDC_CLIENT_SECRET Secret from the client credentials
    OIDC_ISSUER_URI Issuer URI from realm metadata

    When installing nmaas using Helm (nmaas-chart) alter the values file with proper parameters.

    Other providers

    To integrate a different OIDC provider, you must identify equivalent parameters:

    • clientID
    • client secret
    • issuer URI

    nmaas requires the provider to supply the following claims:

    • preferred_username
    • email
    • family_name
    • given_name
    • sub

    If the provider does not expose these claims, integration may require custom mapping on their side.
